Air Mixer pneumatic blender
The Air-Mixer is a pneumatic mixer for fast and gentle mixing and homogenizing of bulk solids

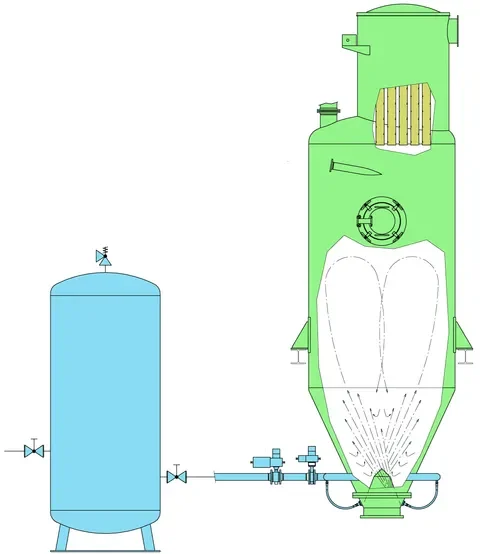

It is a discontinuous, pneumatic mixing process for all free flowing bulk solids and bases on the abrupt and complete gyrating of the mixing product by means of gas-jets that are injected at a certain angle into the mixing product.
Features
•Very short mixing time while maintaining a high mixing quality, even with products with different densities.
•maximum system performance at mixing and conveyor stations in one, up to 2000 tons per day possible
•minimum energy requirements 0.2 - 1 KWh / 1000 kg of powder, 6 - 8 KWh with Granule
•Most gentle treatment of the product, very low abrasion.
•No heat-development
•Very low wear out, even with aggressive products.
•No mechanical moving parts.
•No contamination of the product through gasket-abrasion or lubricants
•Empties completely without build-up of product inside mixer.
•Easy and fast cleaning through gas-cleaning
•Addition of fluids possible.
•Mixing unit in simple Design.
•Can be used to homogenize contents in silos for emptying them.
Satisfied customers and examples
10m³ in 6 minutes
Product:vegetable materials
density:400 Kg/m³
grain size:500 μm
Dust-explosion class:II

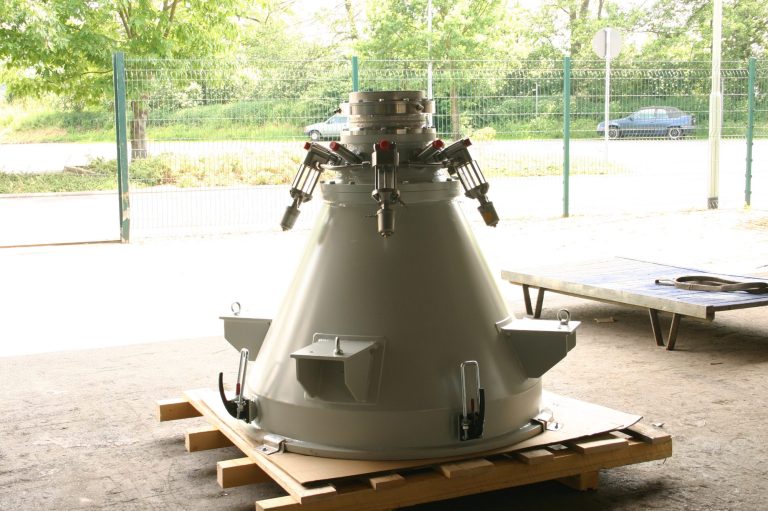

Mixing unit:2 pieces type II/K
net volume:10 m³
gross volume:18 m³
Diameter:2,2 m
Material:1.4301
Filter:2 x 10 m²
Gas storage:8 m³ at 15 bar
Mixing time approximately:6 min.
Gas-consumption:24 m³/1000 Kg
expected deviation: 5%
achieved deviation: 2%
34m³ in 6 minutes
Product:pellets
Density approximately:700 Kg/m³
grain size:diameter up to 4mm; length up to 4mm

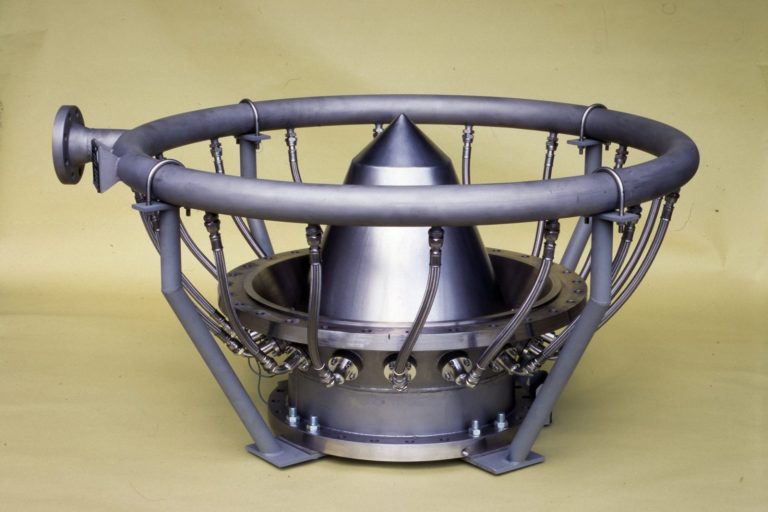

Mixing unit:type IV/K/S
Net volume:34 m³
Gross volume:57 m³
Diameter:3,2 m
Material:1.4301
Mixing time approximately:6 min.
Gas Storage:30 m³ at 24 bar
Gas consumption:27 m³/1000 Kg
expected deviation:2%
achieved deviation:0,58
Jushi Fiberglass China
12 Air mixer and penumatic conveyor
The advantage of the air mixer and pneumatic conveyor is that it is mixed in a silo and this silo can later be used as a cpnveyor vessel. It combines two functions in one. Fiber glass is very sensitive and abrasive. Therefore, gentle mixing using gas is ideal for this product
Evonik Industries AG
Two different mixers are used here. One is our largest to date with 50m³ usable volume for homogenizing daily production and a smaller one for mixing granulate. In total, Evonik uses 11 Air mixers
Sasol Germany GmbH
Sasol also now uses 9 of our air mixers
Imerys/Treibacher
Mixer for abrasives such as corundum with simultaneous moistening/wetting by a liquid
